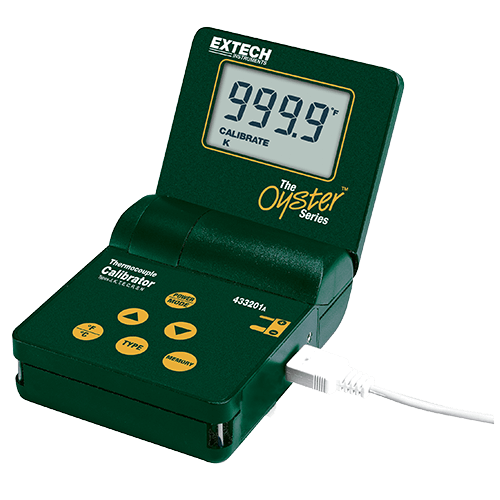

433201 – Multi-Type Calibrator Thermometer

This Thermometer Calibrator sources and measures 8 thermocouple types: J, K, T, E, C, R, S, and N. Displays output in terms of mV or-Degrees F/-Degrees C based on its built-in thermocouple tables. Five stored calibration values for quick calibrations. Oyster case with “flip-up” display is ideal for handheld or benchtop applications. Complete with 9V rechargeable battery, Type K Thermocouple cable, Copper calibration cable, and 115-Volt AC Adaptor/Charger.

  • One model for multiple thermocouple types with precision output displayed as mV or °C/°F
  • Microprocessor assures maximum accuracy to 0.15% of reading over wide ranges
  • High Accuracy Calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters,controllers or recorders.
  • Complete with universal AC adaptor and AU/EU/UK/US plugs
Specifications Ranges for Calibrate and Measure modes Accuracy
Type J -58 to 1830°F -50 to 1000°C) 0.15% rdg ±1°
Type K -58 to 2498°F (-50 to 1370°C) 0.15% rdg ±1°
Type T -184 to 752°F (-120 to 400°C) 0.15% rdg ±1°
Type E 58 to 1382°F (-50 to 750°C) 0.15% rdg ±1°
Type C 32 to 3272°F (0 to 1800°C 0.15% rdg ±1°
Type R 32 to 3182°F (0 to 1750°C) 0.15% rdg ±1°
Type S 32 to 3182°F (0 to 1750°C) 0.15% rdg ±1°
Type N -58 to 2372°F (-50 to 1300°C) 0.15% rdg ±1°
Voltage -5.00mV to +55.00mV 10µV 10µV ±1d
Resolution 0.1° (up to 999.9) or 1° (over 999.9°)
Cold Junction Compensation 0.03°C/°C (0.02°F/°F)
Input Impedance 10MΩ
Sampling Time 4 times/second
Dims/Weight 3.8 x 4.2 x 1.8″ (96 x 108 x 45mm)/ 17oz
