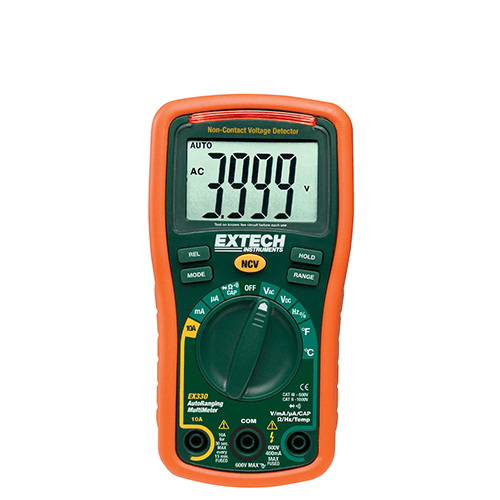

EX330 – 12 Function Mini MultiMeter + Non-Contact Voltage Detector

The EX330 is a compact autoranging multimeter which features extra large 4000 count display and a built-in non-contact AC voltage detector. Advanced function include Frequency, Duty Cycle, Capacitance and Temperature, Diode test and continuity. Rubber holster protects meter. Includes test leads, Type K temperature probe, two AAA batteries and tilt stand.

  • Autoranging DMM with 12 functions and 0.5% basic accuracy
  • AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
  • Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
  • Large-digit 4,000 count LCD display
  • 10A max Current
  • Data Hold, Relative and Auto power off
  • Type K temperature measurements
  • Complete with test leads, tilt stand, protective holster, general purpose Type K bead wire probe and 2 AAA batteries
Specifications Range
Display Counts 4000 counts
Basic Accuracy 0.50%
NCV Detector 100 to 600VAC
DC Voltage 0.1mV to 600V
AC Voltage 0.1mV to 600V
DC/AC Current 0.1µA to 10A
Resistance 0.1Ω to 40MΩ
Capacitance 0.001nF to 200µF
Frequency 0.001Hz to 10MHz
Temperature -4 to 1382°F (-20 to 750°C)
Duty Cycle 0.1 to 99.9%
Diode/Continuity Yes
