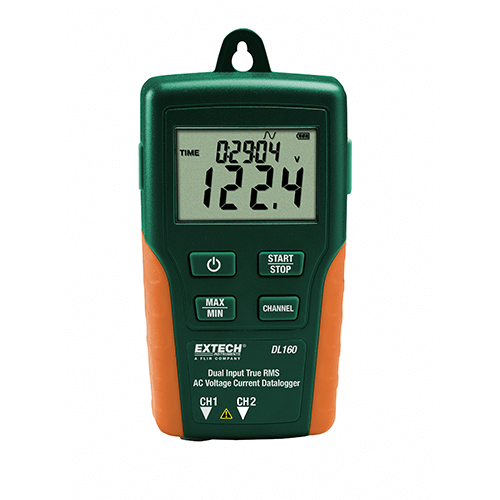

Extech DL160 – Dual Input True RMS AC Voltage/Current Datalogger

The DL160 is a Dual Input True RMS AC Voltage/Current Data logger. Simultaneously data log 2 channels of up to 256,000 readings of TRMS AC Voltage (600V) or Current (200A) or one AC Voltage and one AC Current input with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, and min/max. Readings can be downloaded to your PC via the USB interface. Featuring Normal, Peak, and Capture (user specified trigger level) recording modes. Complete with 2 current clamps, two sets of test leads, 2 sets of alligator clips, software, USB cable, Universal AC Adapter, and 4 x AAA and 2 x CR2032 Batteries.

  • Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input
  • Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
  • LCD indicates time/date, current readings and Min/Max
  • Auto Power off and battery check
  • Complete with 2 Current and Voltage sensor modules, two sets of test leads and alligator clips, USB cable, Windows® software, AC Adaptor and four AAA batteries
Specifications Range Resolution Basic Accuracy
AC Current 10 to 200A 0.1A ±(2% rdg ± 1A)
AC Voltage 10 to 600V 0.1V DL150: ±(1.5%rdg±1V); DL160: ±(2% rdg±1V)
Memory DL150: 100,000 points; DL160: 262,000 points (single channel), 131,000 (dual channels)
Sampling Rate 1 second to 24 hours
PC Interface USB includes software
Dimensions/ Weight 4.5 x 2.5 x 1.3″ (114 x 63 x 34mm)/ 8.7oz (248g)
