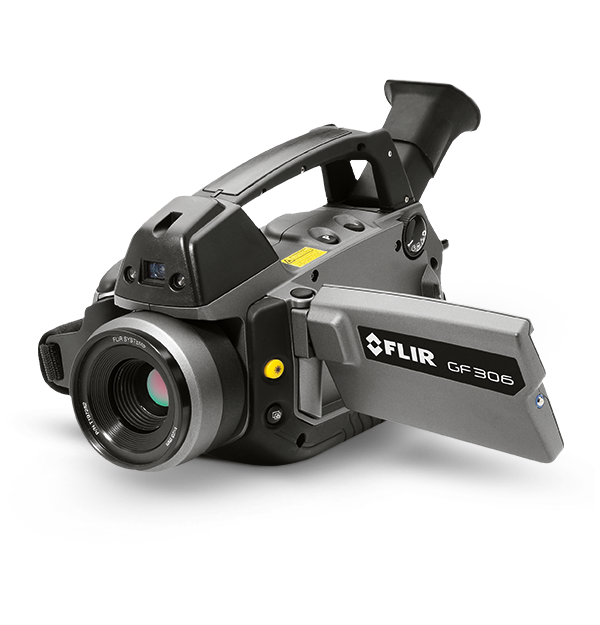

FLIR GF306 – SF6 Optical Gas Imaging Camera

The FLIR GF306 optical gas imaging camera visualizes sulfur hexafluoride (SF6) and other gas emissions without the need to shut down operations. SF6 is used in the electric power industry as an insulator and quenching medium for gas-insulated substations and circuit breakers. The portable, non-contact GF306 allows you to quickly scan substations for leaks while maintaining a safe distance from high-voltage equipment. By catching leaks early, the GF306 reduces lost revenue to breakdowns and repairs.

GF306 inspections are faster than traditional leak-detection tools, and capable of detecting SF6, anhydrous ammonia (NH3), and ethylene (C2H4).

The GF306 accurately measures temperatures up to 500°C, making it a sound addition to your facility’s predictive maintenance program.

Reduce revenue loss by detecting gas leaks efficiently, at a safe distance away from high-voltage areas.

The Sensitivity to Visualize Even Small Leaks

With its superior resolution, thermal sensitivity, and the option of a High Sensitivity Modethe FLIR GF306 allows you to visualize leaks so you can pinpoint the exact source of the emissions and begin repairs immediately. In addition, the GF306 can accurately measure temperatures, allowing you to note temperature differentials and improve visual contrast for better gas plume detection.

Overview
Detector Type
Focal plane array, cooled QWIP
Dynamic Range
14-bit, Real-time non-radiometric recording: MPEG4/H.264 (up to 60 min./clip) to memory card3
Hazardous Location Compliance
NA
NETD
< 15 mK @ 30°C (86°F)
Packaging Size
400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.)
Resolution
320 x 240 pixels
Size [L x W x H ] w Lens
305 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.)
Weight [incl lens & batteries]
2.48 kg (5.47 lb.)
Zoom
1-8x continuous, digital zoom
