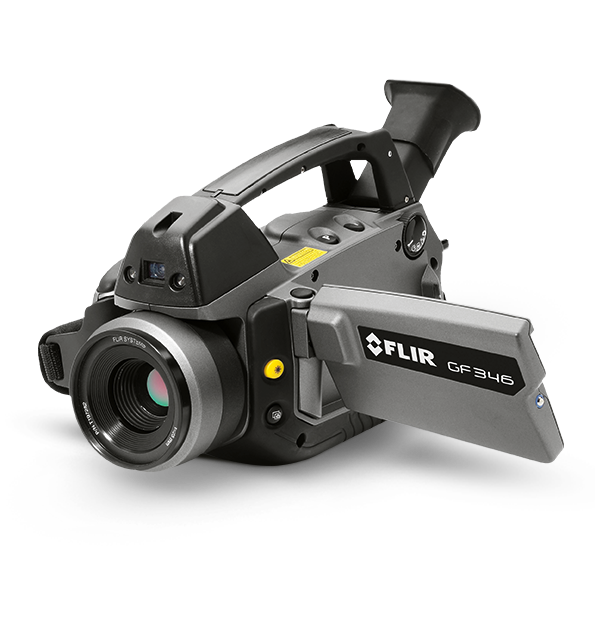

FLIR GF346 – Infrared Camera for CO Detection and Electrical Inspections

The FLIR GF346 optical gas imaging camera detects carbon monoxide (CO) and 17 additional gases without the need to interrupt your plant’s production process. CO emissions can be a significant threat to primary steel manufacturing operations; even the slightest leak in a vent stack or pipe can have a devastating effect. With the FLIR GF346, inspectors can scan large areas from a safe distance, pinpointing leaks in real-time, reducing repair down-time, and providing repair verification.

The Sensitivity to Visualize Even Small Leaks

With its superior resolution, thermal sensitivity, and the option of a High Sensitivity Mode, the FLIR GF346 allows you to visualize leaks so you can pinpoint the exact source of the emissions and begin repairs immediately. In addition, the GF346 can accurately measure temperatures, allowing you to note temperature differentials and improve visual contrast for better gas plume detection.

Specifications
Overview
Area Box
5 (min./max./avg.)
Detector Type
Cooled InSb
Hazardous Location Compliance
NA
Laser Spot
Yes
Packaging Size
400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.)
Profile
1 live line (horiz. or vert.)
Resolution
320 × 240
Zoom
1 – 8× continuous digital
Connections & Communications
Video Out
HDMI
Imaging & Optical
Color LCD
4.3″; 800 × 480 Pixels
Field of view (FOV)
24° × 18°
Focus
Auto & Manual
Global Positioning System [GPS]
Yes
High Temp Option
No
MPEG Video Recording
Yes
On Camera Display
Widescreen 800 x 480 pixel LCD Tiltable 800 × 480 pixel OLED viewfinder
Radiometric JPG
Yes
Radiometric Video [15Hz]
No
Spectral Response
4.52 – 4.67 µm
Total Pixels
76,800
Video Camera wLamp
3.2 MP
Measurement & Analysis
Accuracy
±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)
Delta T
Yes
Spot Meter
10.0
Temperature Range
-20°C to 300°C (-4°F to 572°F)
Thermal Sensitivity
<15 mK @ 30°C (86°F)
