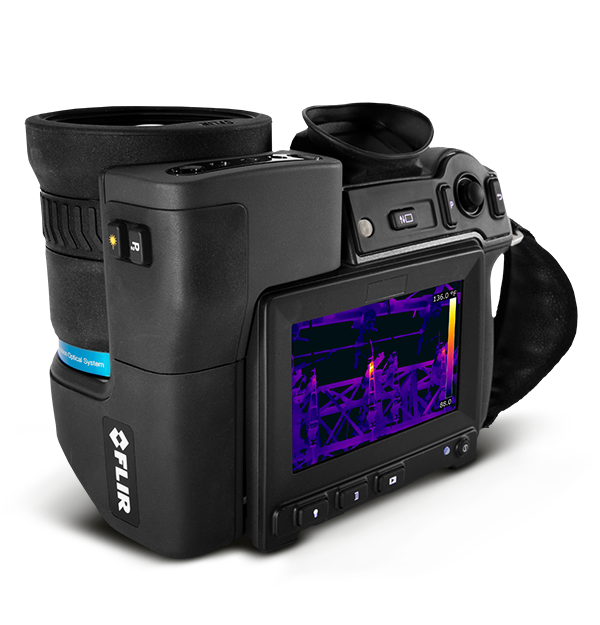

FLIR T1020 – HD Thermal Camera with Viewfinder

Get ready for outstanding thermal imaging performance, built on 50 years of experience. With its remarkable range, up to 3.1 M resolution (UltraMax®), and an agile, new user interface, FLIR’s flagship T1020 is designed to streamline your workday, and make you the hero. For the sharpest images, the truest temperatures, the most flexibility—the T1020 is the ultimate result of five decades of infrared expertise. The FLIR T1020 comes with on-board Inspection Route mode so you can download and run survey plans to your camera from FLIR Thermal Studio Pro with Route Creator plugin (3-month subscription included).

The T1020 now offers an agile new GUI that responds like a smartphone, plus live image enhancements such as 1-Touch Level/Span.

The FLIR OSX™ Precision HDIR optical system offers continuous autofocus and crisp resolution for accurate measurements, even from a distance.

The T1020 has a 120° rotating optical block and bright, high-resolution LCD viewfinder, putting any target within comfortable viewing range.

Outstanding Image Clarity

The T1020 uses the power of FLIR Vision Processing™ to deliver detailed, smooth pictures with very little image noise. FLIR Vision Processing combines HD resolution, MSX®, and UltraMax® image enhancement with FLIR’s proprietary adaptive filtering algorithms to produce brilliant thermal images with up to 3.1 million pixels. Plus, the T1020 is sensitive enough to detect temperature differences down to <20 mK, for clear, low-noise results that keep you from missing any potential issues during inspections.

Overview
Color Alarm (Isotherm)
Above/below/interval
Compass
Camera direction automatically added to every image
Detector Type
Focal plane array (FPA), uncooled microbolometer
Difference Temperature
Delta temperature between the measurement functions and the reference temperature
Display
Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Housing material
Magnesium
Laser
Activated by a dedicated button
Laser Alignment
Position is automatically displayed on the infrared image
Laser Classification
Class 2
Laser Type
Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)
Multi Spectral Dynamic Imaging (MSX)
Thermal image with enhanced detail presentation
Optional Lenses
7°, 28°, 45°, and 3x close-up lenses
Profile
1 line profile with max./min. temperature
Text
Add table, select between predefined templates
Time Lapse
15 seconds to 24 hours
User Presets
The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta
Voice
60 seconds (via Bluetooth) stored with the image
Weight
2.1 kg (4.6 lb)
Order this product
