Tektronix 5 Series MSO Low Profile

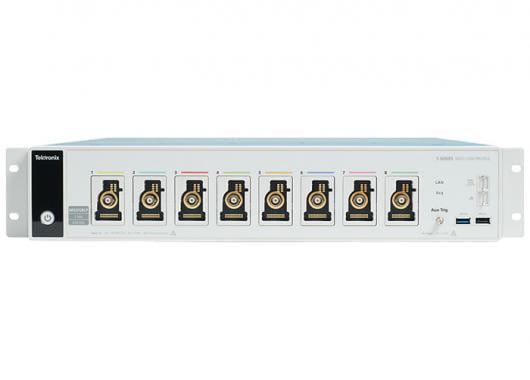

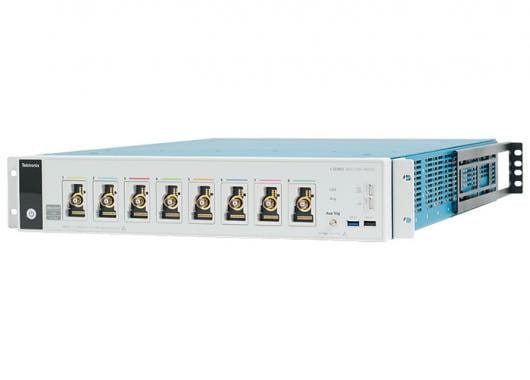

In applications that demand extreme channel density, the 5 Series MSO Low Profile oscilloscope sets a new standard for performance. With 12-bit analog-to-digital converters, this high speed digitizer offers 8 input channels (plus AUX Trig) in a compact package, only 3.5 inches high (2U).

Instrument more of your experiment without adding racks

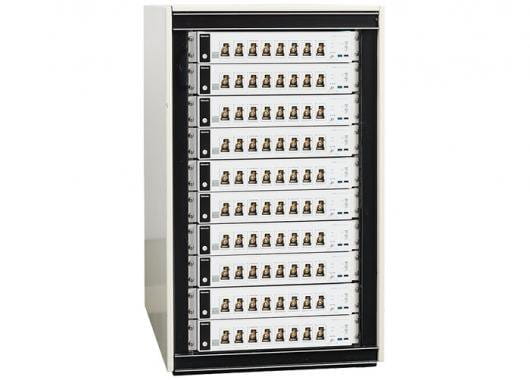

Replace your oscilloscopes and fit 6x more channels into your existing rack space. The 5 Series MSO LP offers 8 channels, plus an auxiliary trigger input, in a space-saving 2U instrument — at a low cost-per-channel. Each the 8 FlexChannelâ„¢ inputs can be used as 1 analog channel or 8 digital channels.

High-fidelity captures and high-quality data

With 1 GHz analog bandwidth, 6.25 GS/s sample rate on all channels, and 125 M record length, the 5 Series MSO Low Profile has the performance you need to capture accurate waveform data with the best possible signal integrity.

See more signal detail than ever with 12-bit vertical resolution and ENOB of 7.6 bits at 1 GHz

12-bit analog-to-digital converters provide 16 times the vertical resolution of traditional 8-bit ADCs. Measure small signal details, even if they are riding on large signals.

Transition from design to manufacturing test, effortlessly

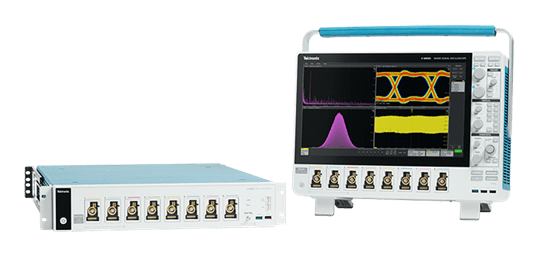

Eliminate work by using exactly the same software and test routines in production that you developed during design. Use the benchtop 5 Series MSO with its 15.6-inch HD display and pinch-swipe-zoom touchscreen for design validation. Then run exactly the same tests using the compact low-profile version in manufacturing. A command translator built into the 5 Series enables it to respond to legacy commands, allowing the replacement of older instruments without changing code.
