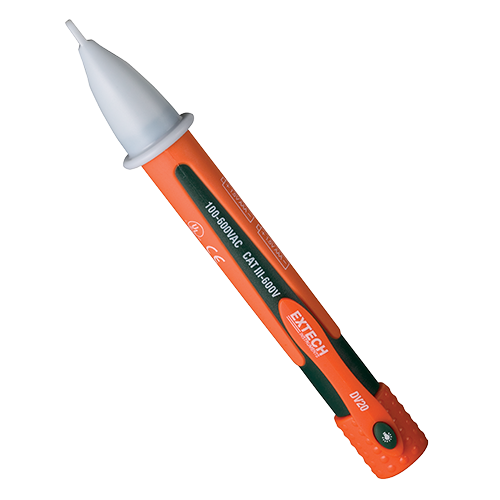

DV20 – AC Voltage Detector/Flashlight

The DV20 is a pocket-sized non-contact voltage detector designed for quick voltage checks on live wires before testing. Other features of this detector is its LED flashlight for illuminating dimly lit areas, rugged double molded housing, and CAT III-600V safety rating. Designed for use on 50/60 Hz circuits. Comes with two AAA batteries and user guide.

  • Non-Contact Detection of AC Voltage from 100VAC to 600VAC
  • Rugged, double molded case
  • Suitable for outlets or against wire insulation testing
  • Red LED light indicator
  • Built-in bright flashlight with ON/OFF button
Specifications Range
Voltage Sensitivity 100V to 600V AC
Bandwidth 50/60Hz
Detection distance <0.2 “
Operating Temperature 32 to 122°F (0 to 50°C)
Batteries 2 x 1.5 ‘AAA’ type
Order this product
