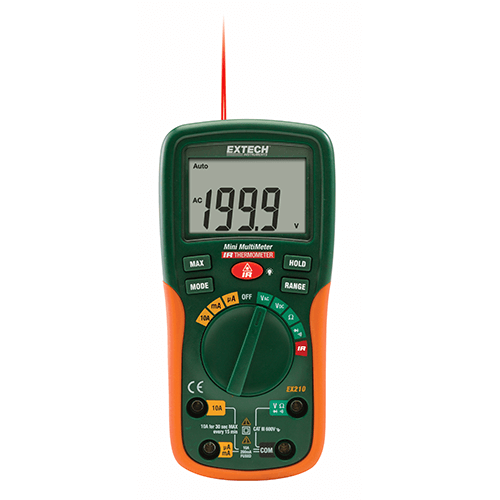

The EX210 is a Mini Digital MultiMeter with built-in IR Thermometer. The meter can quickly identify overheating motors and locate hot spots on electrical panels and HVAC vents without contact. AC/DC Voltage, AC/DC Current, Resistance, Temperature (IR) measurements. The EX210’s rugged design incorporates a 2000 count large backlit dual LCD with easy-to read digits, low current capability measure down to 0.1µA, and input fuse protection. This meter also features max hold and data hold capabilities as well as auto power-off. The EX210 comes complete with test leads and a 9V battery.
- Built-in IR Thermometer with laser pointer for locating hot spots (4:1 Distance to Target Ratio)
- AC/DC Voltage, AC/DC Current, Resistance, Temperature (IR), Continuity / Diode
- 2000 count large backlit dual LCD with easy-to read digits
- Low current capability measure down to 0.1µA
- Max Hold, Data Hold and Auto power off
- Input fuse protection
- Complete with test leads and 9V battery
| Specifications |
Range |
| AC Voltage |
0.1mV to 600V |
| DC Voltage |
0.1mV to 600V |
| Basic Accuracy (VDC) |
±0.5% |
| AC Current |
0.1µA to 10A |
| DC Current |
0.1µA to 10A |
| Resistance |
0.1Ω to 20MΩ |
| Temperature (IR) |
-5 to 446°F (-20 to 230°C) |
| Continuity / Diode |
Yes |
| Dimensions |
5.8×2.9×1.6″ (147x76x42mm) |
| Weight |
9.17oz (260g) |
