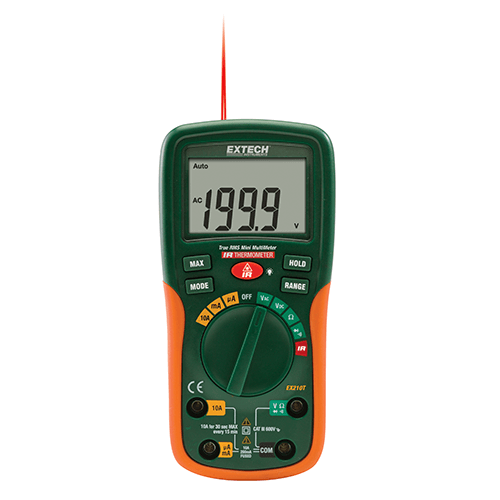

The EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. Measures AC/DC voltage and Current, Resistance and Temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600V safety rating and is complete with a year warranty, test leads and a 9V battery.
- True RMS for better accuracy when measuring distorted waveforms
- Built-in IR Thermometer with 4:1 distance to target ratio and laser pointer
- 2000 count large backlit dual LCD with easy-to read digits
- Low current capability with resolution to 0.1µA
- Input fuse protection
- Max Hold, Data Hold and Auto power off
- Complete with test leads and 9V battery
| Specifications |
Range |
Max Resolution |
| AC Voltage |
600V |
0.1mV |
| DC Voltage |
600V |
0.1mV |
| Basic Accuracy (VDC) |
±0.5% |
| AC Current |
10A |
0.1μA |
| DC Current |
10A |
0.1μA |
| Resistance |
20MΩ |
0.1Ω |
| IR Temperature (EX210T only) |
-5 to 446°F / -20 to 230°C |
0.1° |
| Continuity / Diode |
Yes |
| Dimensions |
5.8×2.9×1.6″ (147x76x42mm) |
| Weight |
9.17oz (260g) |
