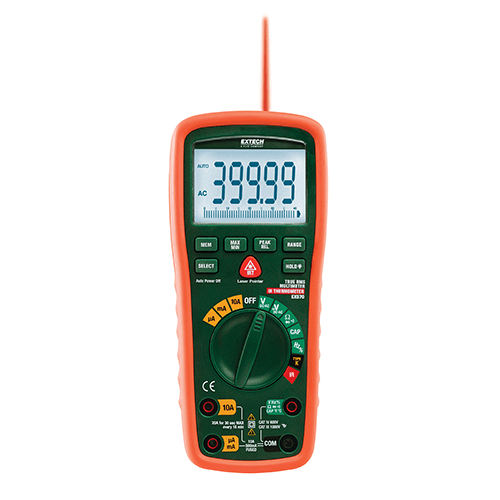

EX570 – 12 Function True RMS Industrial MultiMeter with IR Thermometer

The rugged Extech EX570 is ideal for industrial/plant maintenance and electrical contractors. The affordable EX570 offers advanced multimeter functions, high accuracy (0.06%), True RMS precision plus an integrated infrared thermometer patented by Extech. The EX570 protects users with Category IV-600V and Category III-1000V safety ratings. The EX570 measures voltage, millivolt, current, resistance, capacitance, and frequency plus diode and continuity tests. Added functions include Min. /Max., Average, Hold, Relative, Peak Hold and “quick-note” memory for 3 readings. Thermocouple temperature readings are complemented by an infrared thermometer for safe, non-contact temperature measurement (30:1 distance to spot ratio). Built-in IR simplifies the identification of overheating motors, electrical panels, and other components from a distance and without a separate thermometer. Complete with double-molded test leads, temperature probe, magnetic hanging strap, 9V battery and case.

• Built-in Non-contact InfraRed Thermometer with laser pointer
• True RMS CAT III-1000V, CAT IV-600V rated with 0.06% basic DCV accuracy
• Heavy duty Double molded, water resistant package
• Large backlit 40,000 count LCD with 40-segment bargraph
• Memory for storage and recall of three measurements
• Type K thermocouple contact temperature measurements
• Features include HOLD, RELATIVE and PEAK HOLD
• 1000V input protection on all functions
• Min, Max and Average recording, Auto power off with disable feature
• Capacitance, Frequency, Diode and Continuity functions
• Complete with double molded test leads, magnetic hanging strap, Type K bead wire temperature probe, case, and 9V battery
