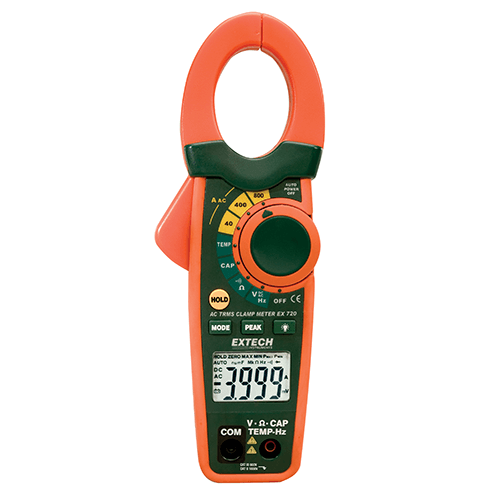

EX720 is an 800A AC Clamp Meter. Functions include Capacitance and Frequency. Features AC/DC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Diode and Continuity, 1ms Fast Peak Hold, True RMS. Double molded housing for better grip and one-handed operation and the Large LCD display with bright backlighting Data hold “freezes” data on display. 1.2″ (30mm) circular jaw opening for large cables (500MCM) and Auto power off features. Complete with test leads, 9V battery and Type K bead wire probe and belt holster.
- MultiMeter functions include AC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Type K Temperature, Diode, and Continuity
- Peak function captures inrush currents and voltage transients
- True RMS Current and Voltage measurements
- 1.2″ (30mm) circular jaw opening for large cables (500MCM)
- Features include Data Hold, F°/C° switchable, Auto power off
- Double molded housing and white LED display backlighting
- Complete with test leads, 9V battery, general purpose Type K bead wire probe and belt holster
| Specifications |
Range |
Basic Accuracy |
| AC Current |
0.01 to 800A |
±2.5% |
| AC Voltage |
0.1mV to 600V |
±1.5% |
| DC Voltage |
0.1mV to 600V |
±1.5% |
| Resistance |
0.1 to 40MΩ |
±1.0% |
| Capacitance |
0.001nF to 40,000μF |
±3.0% |
| Frequency |
0.001 to 4kHz |
±1.5% |
| Temperature (Type K ) |
-4 to 1400°F (-20 to 760°C) |
±(3%rdg+9°F/5°C) |
| Continuity |
Yes |
| Inrush |
Yes |
| Diode |
Yes |
| Dimensions |
9×3.1×1.9″ (229x80x49mm) |
| Weight |
10.7 oz (303g) |
