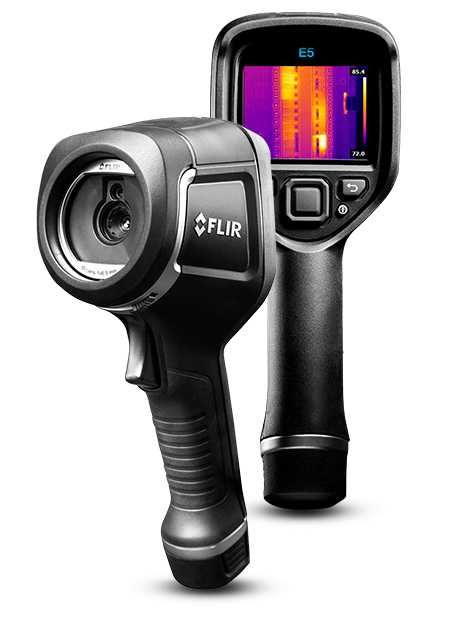

FLIR E5 – Infrared Camera with MSX®

The FLIR E5 is a powerful thermal imaging tool for troubleshooting electrical, mechanical, and building problems. Find hidden issues quickly, easily, and safely–without the need for direct contact with equipment–with this 10,800 (120 × 90) pixel infrared resolution, focus-free camera. By providing thermal images along with accurate temperature measurements, the E5 is the ideal budget-friendly replacement for old-school IR thermometers.

Overview

Camera size (L x W x H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Camera weight incl battery: 0.575 kg (1.27 lb.)

Detector Type: Uncooled microbolometer

Display: 3.0 in. 320 × 240 color LCD

FLIR Screen-EST Mode: No

List of Contents: •Infrared camera
•Hard transport case
•Battery (inside camera)
•USB cable
•Power supply/charger with EU, UK, US and Australian plugs
•Printed documentation

Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail

Packaging Size: 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)

Compliance & Certifications

Certifications: UL, CSA, CE, PSE and CCC

Connections & Communications

AC Operation: AC adapter, 90–260 VAC input, 5 VDC output to camera

Interface: USB Micro: Data transfer to and from PC and Mac device

WiFi: N/A

Environmental

EMC: •WEEE 2012/19/EC
•RoHs 2011/65/EC
•C-Tick
•EN 61000-6-3
•EN 61000-6-2
•FCC 47 CFR Part 15 Class B

Emissivity table/correction: Emissivity table of predefined materials/variable from 0.1 to 1.0

Encapsulation/Drop: IP 54 (IEC 60529)/2m (6.6 ft.)

Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range: –15°C to 50°C (5°F to 122°F)

Radio Spectrum: N/A

Shock: 25 g (IEC 60068-2-27)

Storage Temperature Range: –40°C to 70°C (–40°F to 158°F)

Vibration: 2 g (IEC 60068-2-6)

Imaging & Optical

Color: Black and gray

Color Palettes: Black & white, iron, and rainbow

Digital Camera Resolution/FOV: 640 × 480/55° × 43°

Field of view (FOV): 45° × 34°

f-number: 1.5

Focus: Focus free

Image Adjustment: Automatic adjust/lock image

Image Frequency: 9 Hz

Image Modes: Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera

IR Resolution: 120 × 90 pixels

Minimum Focus Distance: 0.5 m (1.6 ft.)

Spatial resolution (IFOV): 6.9 mrad

Spectral Range: 7.5–13 µm

Thermal Sensitivity/NETD: <0.10°C (0.27°F) / <100 mK

Measurement & Analysis

Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Object Temperature Range: –20°C to 250°C (–4°F to 482°F)

Reflected apparent temperature correction: Automatic, based on input of reflected temperature

Set-up Commands: Local adaptation of units, language, date and time formats

Spotmeter and Area: Center spot; box with min./max.

Power

Battery type & operating time: Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use

Charging system: Battery is charged inside the camera or in specific charger.

Charging Time: 2.5 hours to 90% capacity in camera. 2 hours in charger.

Power Management: Automatic shut-down

Storage Media

File Formats: Standard JPEG, 14-bit measurement data included
