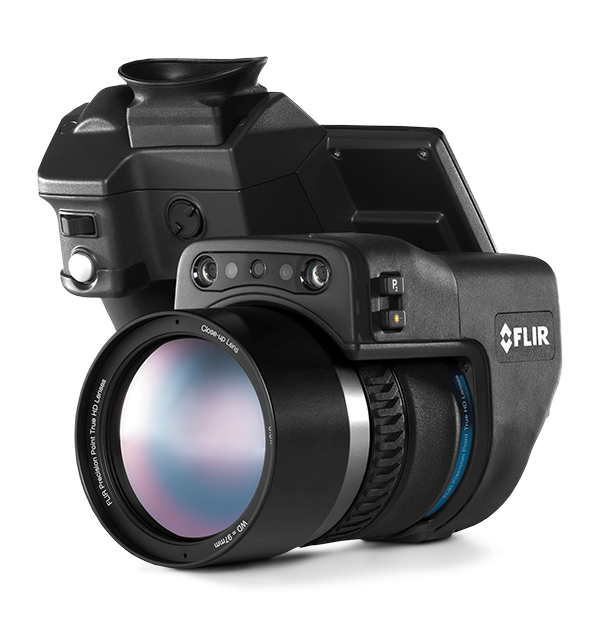

FLIR T1020 (Science) – HD Performance Handheld Infrared Camera

The T1020 (T1K) is a portable, high-speed, high definition infrared cameras designed to help you capture stunning thermal images and precise temperature measurement, whether you’re in the field or in the lab. Stream lossless radiometric imagery at up to 240 Hz with windowing through the optional High Speed Interface (HSI)*. When paired with a close-up 3× lens, T1K cameras accurately measure temperature on targets down to 51 μm. Whether you’re an engineer, researcher, or product developer, these battery-powered, handheld cameras offer the features and flexibility you need.

HD Image Clarity – An extraordinarily sensitive detector and HD-ready optics provide stunning thermal images and accurate, non-contact temperature measurements

Portability and Flexibility – Battery-powered, handheld camera goes where you need it. Wi-Fi communication simplifies image sharing, remote control and viewing, and quick reporting.

High-Speed Data – Stream uncompressed data to a PC or capture fully dynamic radiometric video in the camera.


Camera size (L x W x H)
244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera weight incl battery
0.575 kg (1.27 lb.)
Detector Type
Uncooled microbolometer
3.0 in. 320 × 240 color LCD
FLIR Screen-EST Mode
List of Contents
•Infrared camera
•Hard transport case
•Battery (inside camera)
•USB cable
•Power supply/charger with EU, UK, US and Australian plugs
•Printed documentation
Multi Spectral Dynamic Imaging (MSX)
IR image enhanced with visible camera detail
Packaging Size
385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
