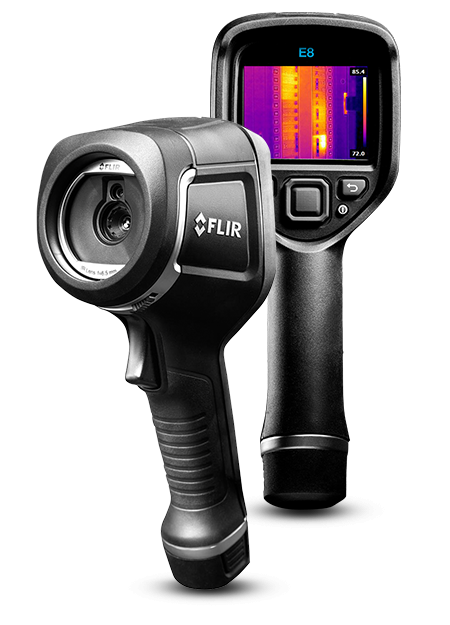

FLIR E8 – Infrared Camera with MSX®

Play Video

Gain a competitive advantage with the FLIR E8–our affordable, high-resolution thermal imaging camera for electrical, mechanical, and building inspection. Find hidden electrical faults, mechanical issues, and sources of energy loss thanks to the E8’s crisp 76,800 (320 × 240) pixel infrared resolution and FLIR Multi-Spectral Dynamic Imaging (MSX®) image enhancements. The E8 is fully automatic, focus-free, and built to last, so you can use it with confidence in even the most rugged environments.

MSX® Image Enhancement

The E8 features FLIR’s unique MSX that adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera’s LCD.

Overview

Camera size (L x W x H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Camera weight incl battery: 0.575 kg (1.27 lb.)

Detector Type: Uncooled microbolometer

Display: 3.0 in. 320 × 240 color LCD

FLIR Screen-EST Mode: No

List of Contents: •Infrared camera
•Hard transport case
•Battery (inside camera)
•USB cable
•Power supply/charger with EU, UK, US and Australian plugs
•Printed documentation

Multi Spectral Dynamic Imaging (MSX): IR image enhanced with visible camera detail

Packaging Size: 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
