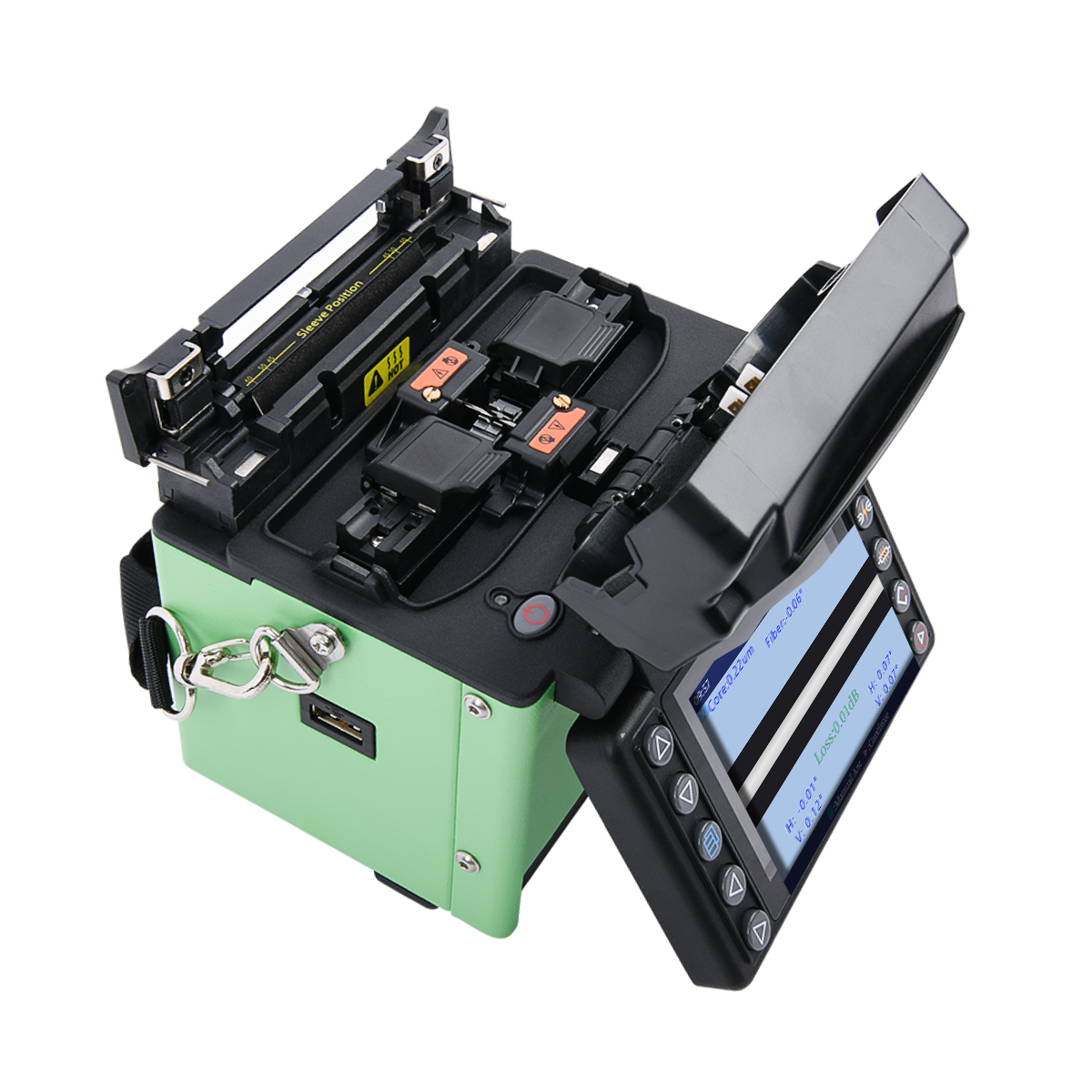

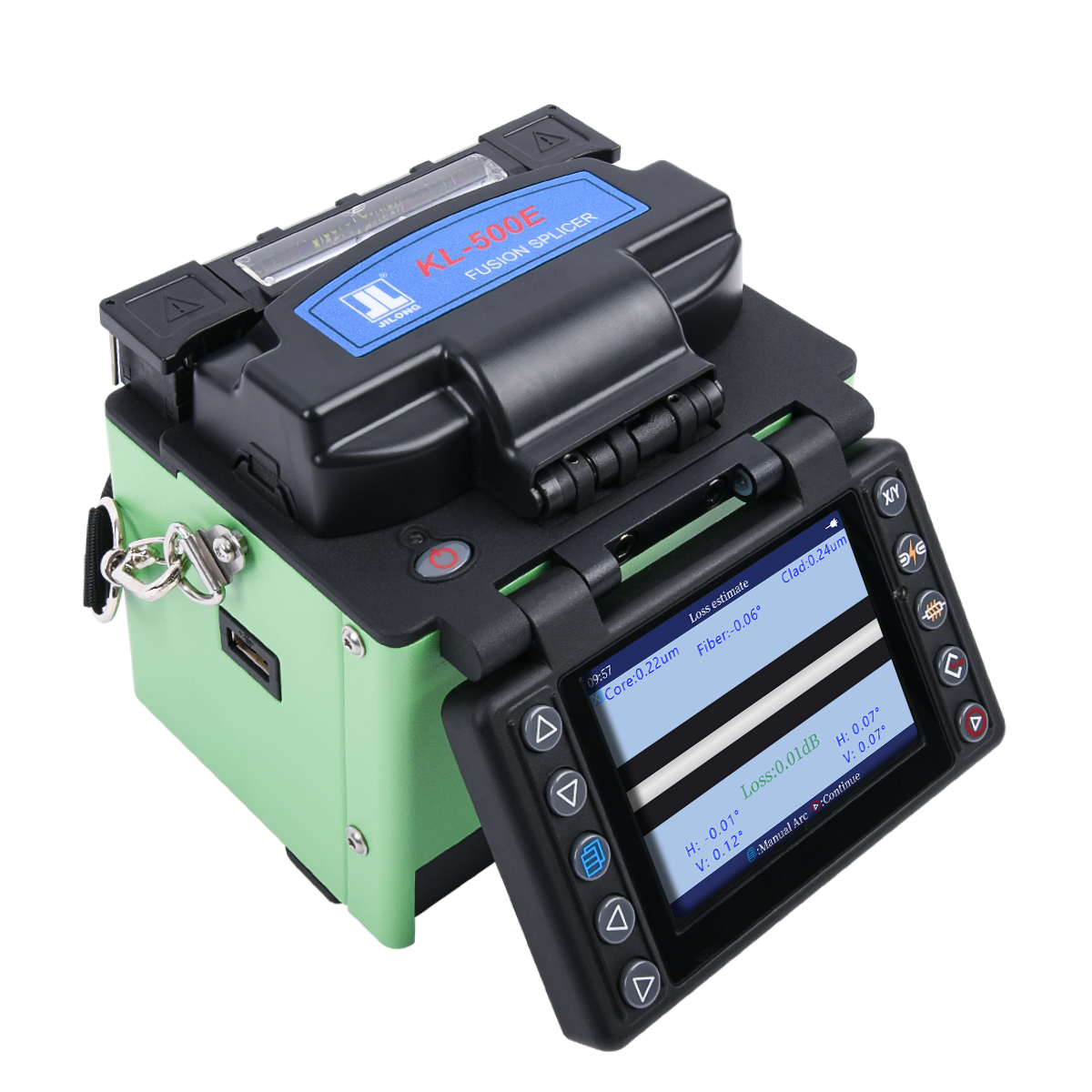

Handheld Fusion Splicer KL-500E

KL-500E adopts 3.5-inch color display, high-speed image processing technology and special precision positioning technology, fast splicing, 9S automatic completion. Hand-held model, small size, light weight, easy to carry; Simple operation, fast splicing, low loss, real-time automatic discharge correction, stable welding heating; Deep recessed windshield design, normal work under 15m/s strong wind; Low pressure self-compensation function improves the splicing performance, and is widely used in the optical fiber and cable engineering and maintenance of telecommunications, radio and television, electric power, military and other communication fields.


Fast-splicing 9s; Fast-heating 18s

Average splicing loss 0.01dB

Electrode life: 5000 times

280X Magnification.The fiber core is clearly visible

3400mAh Battery capacity, 160 splice & heat cycles

5 Inch color screen

4 Motors aligning

3-in-1 Fiber holder, suitable for Bare fiber/ Pigtail fiber/Jump fiber/Flat fiber

Saved 10000 sets of welding results, 100 sets of image

Compact, light weight & faster
