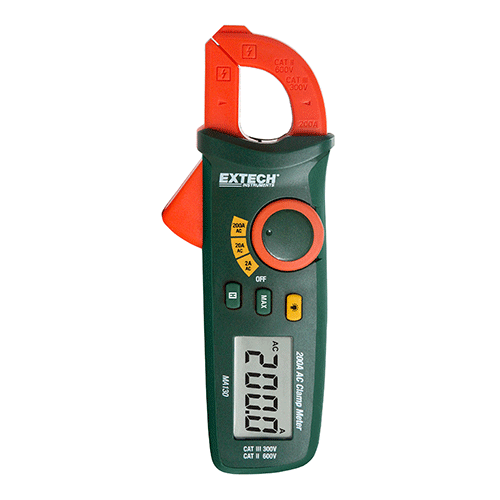

MA130 – Mini 200A AC Clamp Meter

Easy-to-use mini pocket-sized design with backlit LCD display and 0.6″ (16mm) jaw size fits conductors up to 300MCM. It allows measurements in tight locations. Manual ranging Current measurements with three ranges to choose from. Features data hold to freeze reading on display and Max hold to record maximum Current reading.

  • Mini pocket-sized design
  • Backlit LCD display
  • 0.6″ (16mm) jaw size fits conductors up to 300MCM
  • Data Hold freezes reading on display
  • Max Hold displays maximum reading
  • Large LCD with backlit feature for viewing in dimly lit area
  • Auto Power Off
  • Complete with two AAA batteries
Specifications Range Max Resolution Basic Accuracy
AC Current 2.000A 1mA ±(4% + 30d)
20.00A 10mA
200.0A 100mA
Dimensions 6.2×2.4×1.3″ (158x60x33.5mm)
Weight 6oz (170g)
