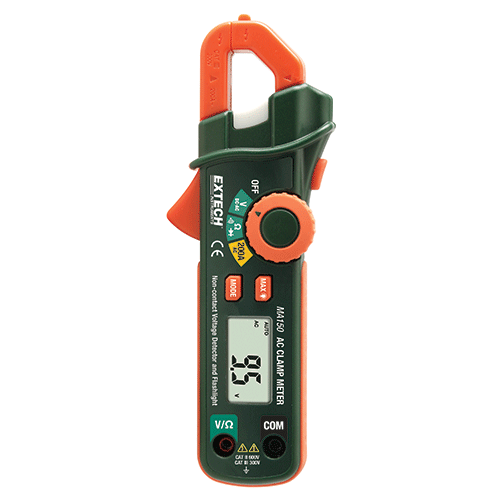

MA150 – 200A Mini AC Clamp Meter + NCV Detector

This mini clamp-on meter offers the convenience of a built-in non-contact AC voltage detector and bright white LED flashlight. Measures AC current up to 200 Amp with 0.1 Amp resolution. Also measures AC/DC Voltage and Resistance. The 0.7 in. jaw fits around conductors up to 300MCM. Compact size allows getting into tight spaces. Auto power off, data hold, and low battery indicator. Includes two AAA batteries and case.

  • 0.7″ (18mm) jaw opening
  • 2000 count backlit LCD display
  • Non-contact AC Voltage detector (100 to 600VAC) via clamp tip
  • Built-in white LED flashlight
  • Continuity and Diode Test, Max Hold, Auto power off
Specifications Range
AC Current 200A
Max Resolution 100mA
Accuracy ±2.5%
AC Voltage Non-contact/600V
Max Resolution 0.1mV
DC Voltage 600V
Max Resolution 0.1mV
Resistance 20MΩ
Max Resolution 0.1Ω
Accuracy ±3.0%
Dimensions 7×2.5×1.3″ (178x65x32mm)
Weight 6 oz (170g)
