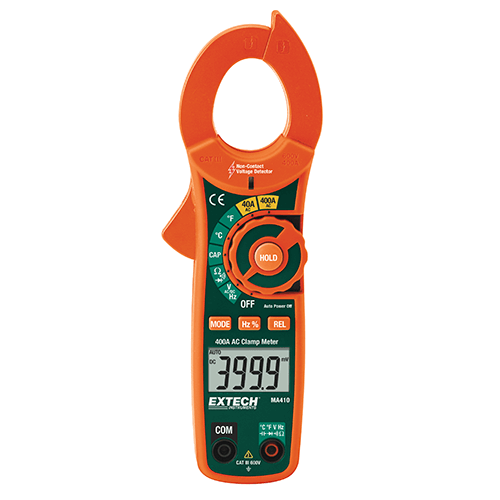

MA410 – 400A AC Clamp Meter + NCV

The compact-sized Extech MA410 400 amp True RMS autoranging AC/DC clamp meter offers plant maintenance techs, electrical contractors, HVAC troubleshooter, and DIYers a test instrument that delivers a high level of features and value. In addition to a host of core multimeter and current measurement capabilities, it also has a built-in, non-contact voltage (NCV) detector. The heart of the MA410 is a full-function digital multimeter. Measurement functions cover most types of troubleshooting over and above noninvasive current probe measurements: voltage, resistance, capacitance, frequency, duty cycle, diode and continuity tests. Even measure temperature with the supplied Type K bead wire probe. Comes with test leads, general purpose Type K wire temperature probe, two AAA batteries, carrying case, user manual, and manufacturer’s one-year limited warranty.

  • AC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Duty Cycle, Diode and Continuity
  • Integrated Non-Contact Voltage Detector with LED alert
  • Compact size allows measurments in tight locations
  • 1.2″ (30mm) jaw size for conductors up to 350MCM
  • Relative Mode for Capacitance Zero and Offset Adjustment
  • Data Hold and Auto Power Off
  • Complete with test leads, general purpose Type K temperature probe, two AAA batteries, and carrying case
Specifications Range Max. Resolution Basic Accuracy (% readings+digits)
Display counts 4000
AC Current 40.00A, 400.0A 0.01A ±(2.5% + 8d)
AC Voltage 4.000V, 40.00V, 400.0V, 600V 0.001V ±(1.8% + 8d)
DC Voltage 400.0mV, 4.000V, 40.00V, 400.0V, 600V 0.1mV ±(0.8% + 2d)
Resistance 400.0Ω, 4.000kΩ, 40.00kΩ, 400.0kΩ, 4.000MΩ, 40.00MΩ 0.1Ω ±(0.8% + 2d)
Frequency 10Hz to 10kHz 0.01Hz ±(1.5% + 2d)
Capacitance 40.00nF, 400.0nF, 40.00μF, 100.0μF 0.01nF ±(3.0% + 5d)
Temperature -4 to 1400°F (-20 to 760°C) 0.1° ±(3% + 9°F/5°C)
Duty Cycle 0.5 to 99.0% 0.10% ±(1.2% + 2d)
Diode Yes
Continuity Yes
Dimensions 7.9×2.6×1.5″ (200x66x37mm)
Weight 7.2oz (205g)
