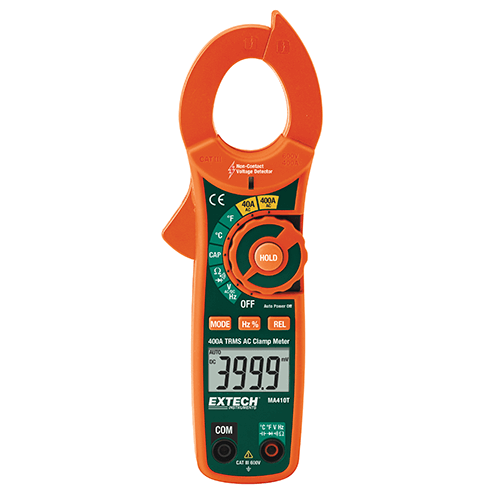

MA410T – 400A AC True RMS Clamp Meter + NCV

The Extech MA410T is a 400 amp True RMS AC clamp meter capable of safely and efficiently measuring current without test leads. True RMS provides more accurate AC readings when measuring distorted waveforms. The integrated NCV detector enables users to quickly check for the presence of live wires before testing. Digital multimeter functions on the MA410T include: AC/DC voltage (600 volts); resistance (40 MΩ); capacitance (100 µF); frequency (10 kHz); temperature (-4 to 1400 degrees F/-20 to 760 degrees C); duty cycle; diode; and continuity. The MA410T also provides a 1.2-inch (30mm) jaw opening size for conductors up to 350 MCM; 4000 count backlit display; and data hold; relative mode; and auto power off functions. Comes with test leads, general purpose Type K bead wire temperature probe, two AAA batteries, carrying case, and user manual.

  • True RMS for accurate readings of non-sinusoidal waveforms
  • AC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Duty Cycle, Diode and Continuity
  • Integrated Non-Contact Voltage Detector with LED alert
  • Compact size allows measurments in tight locations
  • 1.2″ (30mm) jaw size for conductors up to 350MCM
  • Relative Mode for Capacitance Zero and Offset Adjustment
  • Data Hold and Auto Power Off
  • Complete with test leads, general purpose Type K temperature probe, two AAA batteries, and carrying case
Specifications Range Max. Resolution Basic Accuracy (% readings+digits)
Display counts 4000
AC Current 40.00A, 400.0A 0.01A ±(2.5% + 8d)
AC Voltage 4.000V, 40.00V, 400.0V, 600V 0.001V ±(1.8% + 8d)
DC Voltage 400.0mV, 4.000V, 40.00V, 400.0V, 600V 0.1mV ±(0.8% + 2d)
Resistance 400.0Ω, 4.000kΩ, 40.00kΩ, 400.0kΩ, 4.000MΩ, 40.00MΩ 0.1Ω ±(0.8% + 2d)
Frequency 10Hz to 10kHz 0.01Hz ±(1.5% + 2d)
Capacitance 40.00nF, 400.0nF, 40.00μF, 100.0μF 0.01nF ±(3.0% + 5d)
Temperature -4 to 1400°F (-20 to 760°C) 0.1° ±(3% + 9°F/5°C)
Duty Cycle 0.5 to 99.0% 0.1% ±(1.2% + 2d)
Diode Yes
Continuity Yes
Dimensions 7.9×2.6×1.5″ (200x66x37mm)
Weight 7.2oz (205g)
