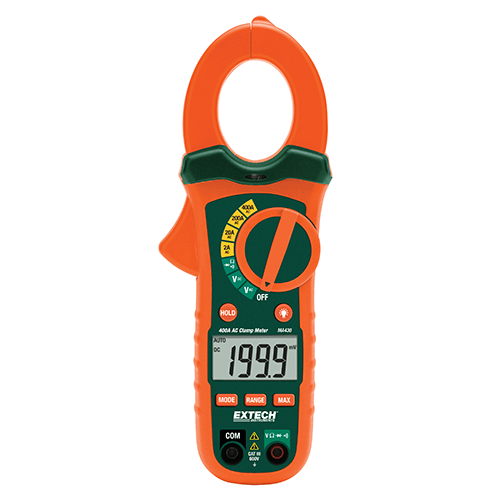

MA430 – 400A AC Clamp Meter + NCV

The MA430 is a compact 400 amp AC clamp meter that enables users to take measurements in tight spaces while offering an ample 1.2-inch (30mm) jaw opening to accommodate conductors up to 350 MCM. Featuring a large, four-digit readout, the illuminated display is easy to see in poorly lit work areas, and the thumb-dial selector is ergonomically placed for convenient, one-hand operation. The MA430’s multimeter functions include: AC/DC voltage, resistance, diode, and continuity. Also built into the MA430 is the non-contact voltage (NCV) detector. Eliminating the need for a separate tester, the NCV detector uses a red LED to alert users to the presence of voltage on live wires. Additional features include a backlit LCD display, data hold, auto power off, and low battery indication. Comes with test leads, 9-volt battery, soft carrying case, and user manual.

  • Functions include: AC Current, AC/DC Voltage, Resistance, Diode and Continuity
  • Built-in non-contact Voltage detector with LED alert
  • 1.2″ (30mm) jaw size for conductors up to 350MCM
  • Backlit LCD display
  • Data Hold, Auto Power Off and Low Battery indication
  • Complete with test leads, 9V battery, and soft carrying case
Specifications Range Basic Accuracy
Display counts 2000
True RMS — / Yes
AC Current (max res.) 400A (0.001A) ±(2.5% + 8d)
DC Current (max res.) ±(2.5% + 5d)
AC Voltage (max res.) 600V (0.1mV) ±(1.5% + 5d)
DC Voltage (max res.) 600V (0.1mV) ±(1.5% + 2d)
Resistance (max res.) 20MΩ (0.1Ω) ±(1.5% + 2d)
Frequency (max res.) ±(1.5% + 2d)
Capacitance (max res.) ±(3.0% + 5d)
Temperature (max res.) ±(3% + 9°F/5°C)
Diode/ Continuity Yes
Dimensions/ Weight 7.8×2.8×1.6″ (197x70x40mm)/ 6.5oz (183g)
