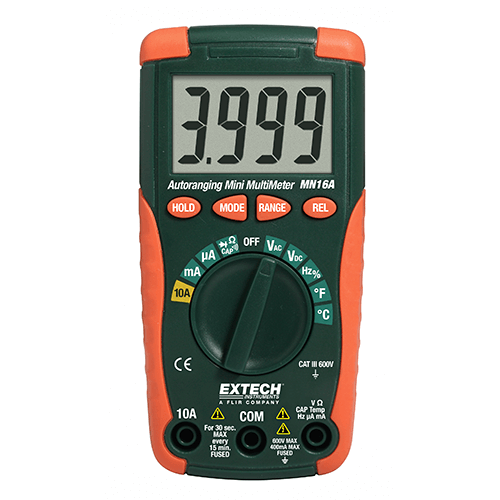

The MN16A is a Digital Mini Multimeter. Measures AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Continuity, Diode Test, Type K Temperature and Duty Cycle. In addition, it has an Auto power off with disable feature. Measurements are viewed on a large, easy-to-read LCD display. Product complete with two AAA batteries, general purpose Type K bead wire probe and test leads.
- Large easy to read digital display
- AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Continuity, Diode Test, Type K Temperature and Duty Cycle
- Auto power off with disable feature
- Complete with two AAA batteries, general purpose Type K bead wire probe and test leads
| Specifications |
Range |
Basic Accuracy |
| DC Voltage |
600V (1mV) |
±1.2% |
| AC Voltage |
600V (0.1mV) |
±1.5% |
| DC Current |
10A (0.1µA) |
±1.5% |
| AC Current |
10A (0.1µA) |
±1.8% |
| Resistance |
40MΩ (0.1Ω) |
±1.2% |
| Capacitance |
100µF (0.01nF) |
±3.0% |
| Frequency |
5MHz (0.001Hz) |
±1.2% |
| Temperature |
-4 to 1400°F
(-20 to 750°C) |
±(3%rdg+9°F/5°C) |
| Duty Cycle |
0.1 to 99.9% |
±1.2% |
| Dimensions/Weight |
5.43×2.83×1.5” (138x72x38mm)/ 5.4oz (153g) |
|
